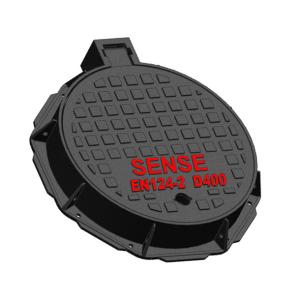

Circular Manhole Cover With Farme ICMQ Certification
Applications:
Expressway, sidewalk, park, garden, municipal pipeline, telecommunication, water and electrical power projects.
- A15 - Areas to be used only by pedestrians and cyclists.
- B125 - Pavements, pedestrianised areas and similar surfaces, parking areas and multistorey car parks.
- C250 - For covering devices installed on roadsides and in gutters at the side of streets.
- D400 - Road surfaces (including pedestrianised streets), hard shoulders and parking areas for vehicles of all kinds.
- E600 - Areas used by heavy vehicles, such as surfaces in airport and dock facilities.
- F900 - Areas subject to particularly heavy loading, for example surfaces in airports.
Round Manhole Covers
Manhole cover is a removeable plate and installed on vehicular traffic and pedestrian areas to prevent anyone or anything falling in. Special-function manhole covers should keep out unauthorized persons and materials falling into, and convenience repair personnel to maintain equipment, such as Telecommunication manhole covers. Manhole covers have many perfect performance: high strength, beauty appearance, easy to use, guard against theft, Acid and alkali resistance, corrosion resistance, wear resistance, rolling resistance, long service life etc. We produce various classes from A15 to F900 according to customer’s drawings or requirement. Based on material, manhole covers can be categorized into four groups-metal manhole covers, cement-based composite, Recycled resin composite manhole cover, Polymer matrix composite manhole cover etc. Based on shape, manhole cover can be categorized into square and round. Round manhole cover is generally used urban road administration, which can better protect the safety of pedestrians and vehicles. In rural areas and cable wells, the square is widely used, which can better prevent rainwater and other liquids. All manhole covers totally meet with EN125-2 standard, which is widely used Global market.
Specifications:
MANHOLE COVERS ROUND WITH ROUND FRAME
Material: Ductile iron EN GJS500-7 |
| Item code |
CLASS |
Spec |
External
dimensions
mm |
Clear
opening
mm |
Height
mm |
unit weight(kgs/set) |
Accessories |
| CTCD50 |
D400 |
φ500 |
φ500 |
φ400 |
85 |
27 |
Gasket EPDM;Locking System |
| CTCD60 |
D400 |
φ600 |
φ600 |
φ500 |
85 |
37 |
Gasket EPDM;Locking System |
| CTCD70 |
D400 |
φ700 |
φ700 |
φ600 |
85 |
47 |
Gasket EPDM;Locking System |
| CTCD80 |
D400 |
φ800 |
φ800 |
φ600 |
85 |
51 |
Gasket EPDM;Locking System |
| CTCD85 |
D400 |
φ850 |
φ850 |
φ600 |
100 |
52 |
Gasket EPDM;Locking System |
Standards and features:
A. All kinds of size as customer's requirements;
B. Small quantity trial order is welcome
C. Customized design is available and free, Such as Color, Logo, Panel, Load and Dimension etc.
D. Quality control and Promptly delivery
E. Good service after sales.
